MAN Engines are the most advanced and innovative in the world. MAN has a long standing commitment to delivering extremely high quality products.
Our Commercial customers reap the benefits of MAN engines and establish long term partnerships with us, strengthening their vessel/fleet operation.

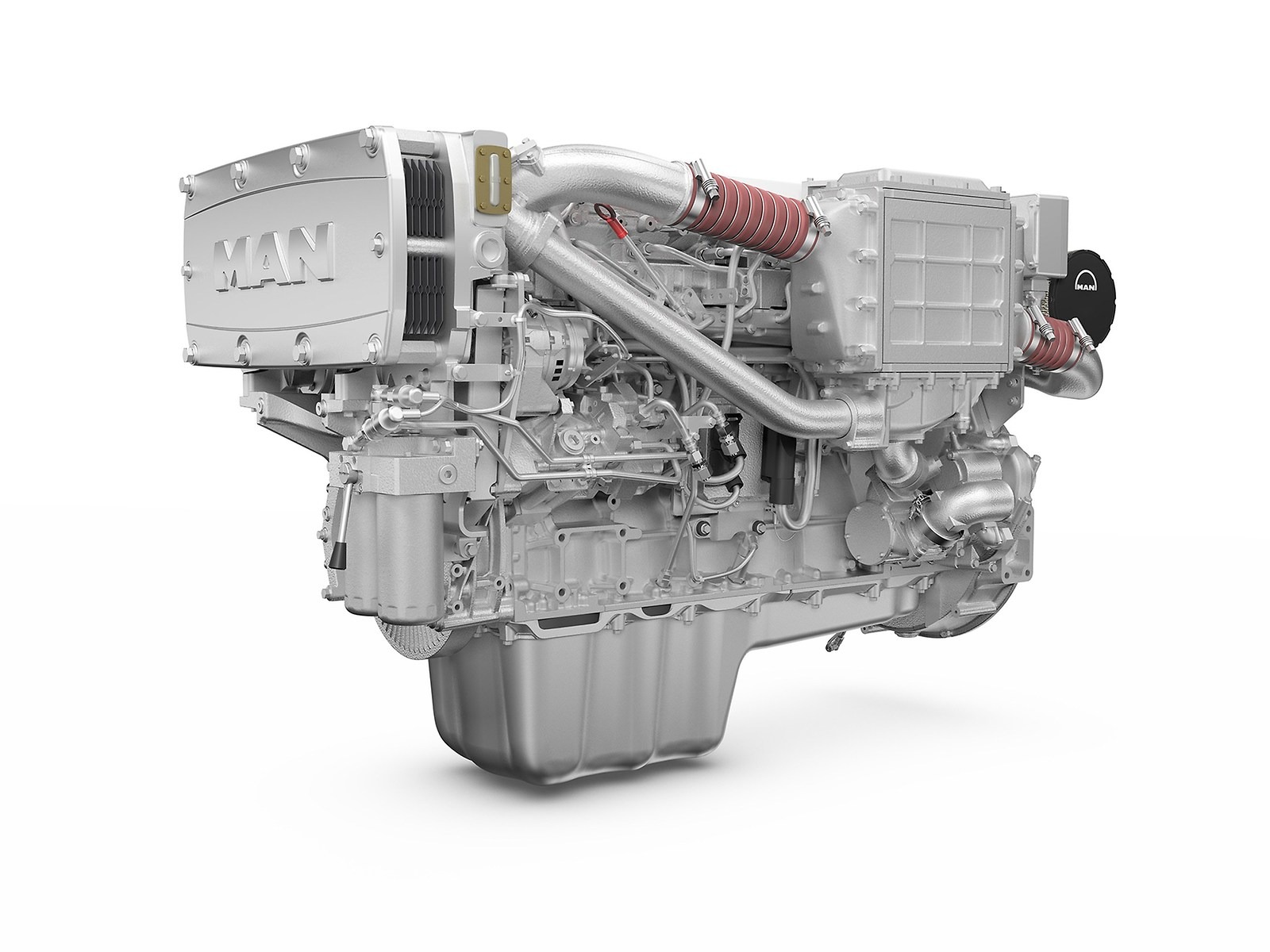

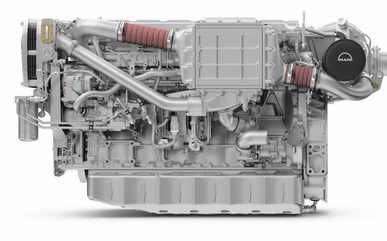

MAN Engines introduced a new generation of in-line six cylinder engines, based on the highly successful and proven 12.4 litre D2676. The six-cylinder base engine has already been in use in numerous on- and off-road applications since 2007 and has proven itself hundreds of thousands of times. The robustness and reliability in the work boat industry has been further proven by extensive field testing over several thousand hours on ferries, pilot boats and high-speed catamarans.
Work boats such as passenger ferries, pilot boats and fishing boats and lifeboats install the D2676 providing a power range of 221 to 625 kW (301 to 850 HP) at light, medium or heavy duty ratings.

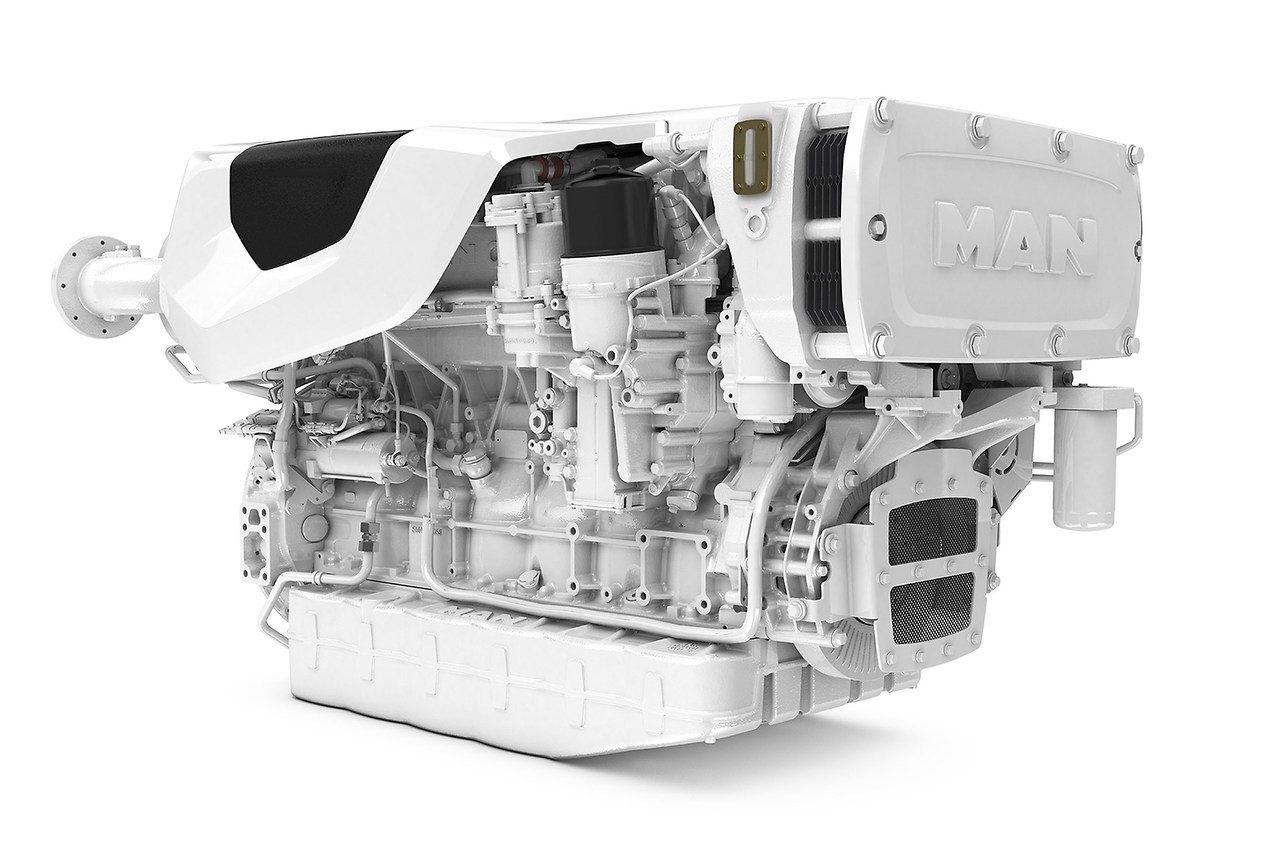

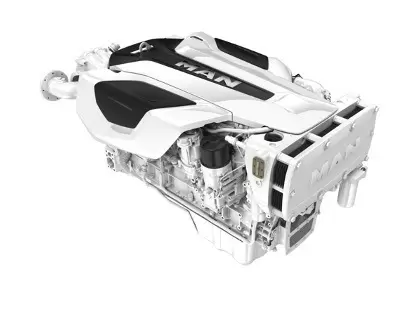

Many well known luxury yacht brands and Sportsfishers around the world choose the i6 from 730, 800 or 850HP within the light operation rating.
The modern common rail injection system used in the i6/D2676, with fuel pressures up to 1,800 bar, ensures high mean pressures and optimized combustion. In this way, MAN engineers achieve lower vibrations and noise emissions as well as low fuel consumption.
The new i6/D2676 engines clearly show the wide torque plateau typical of MAN marine engines.
The most powerful variant 625 kW (850 HP) for example even provides 2,740 Nm between 1,400 and 2,100 rpm for light-duty operation.
This allows maximum torque to be realised over a wide speed range with the lowest specific fuel consumption. As a result, acceleration is continuous and the planing phase is highly efficient.
For ship designers, the new in-line six-cylinder engines with dimensions of 1,800 x 922 x 1,103 mm (L x W x H) offer MAN’s usual compact dimensions – in this case with an even slimmer oil sump. At 1,200 kg (dry), the new engine generation also impresses with an even better power-to-weight ratio.
Pleasure boat manufacturers have embraced the award winning designer cover and engine aesthetics. With its elegant and timeless design, the engine perfectly matches the design language of modern luxury yachts. “The engine has always been the source of power and dynamics, which ship designers have expressed in their work. Now the circle closes with an MAN yacht engine as an art object in itself”, states Claus Benzler, Head of Marine MAN Engines.
Rating kW (mhp)
537 (730)
588 (800)
625 (850)
Variant
LE 446
LE 426
LE 456
Emissions
IMO II, EPA III com
IMO II, EPA III com
IMO II, EPA III rec
Rating kW (mhp)
412 (560)
412 (560)
412 (560)
412 (560)
441 (600)
478 (650)
478 (650)
Variant
LE 432
LE 435
LE 438
LE 43B
LE 428
LE 422
LE 425
Emissions
IMO II
IMO II, EPA III com
IMO III
IMO III, Euro V
IMO III
IMO II
IMO II, EPA III com
Rating kW (mhp)
221 (301)
290 (394)
290 (394)
331 (450)
331 (450)
331 (450)
368 (500)
368 (500)
368 (500)
368 (500)
Variant
LE 457
LE 484
LE 487
LE 491
LE 494
LE 497
LE 471
LE 474
LE 477
LE 47A
Emissions
IMO III, Euro V
IMO II, EPA III com
IMO III, Euro V
IMO II
IMO II, EPA III com
IMO III
IMO II
IMO II, EPA III com
IMO III
IMO III, Euro V
6 cylinder in line, 12.4L displacement
Bore 126mm, Stroke 166mm
Power rating – kW
Light: 537-625 kW
Medium: 412-478 kW
Heavy: 221-368 kW
V8, 16.2L displacement
Bore 128mm, Stroke 157mm
Power rating – kW
Light: 735-956 kW
Medium: 588-662 kW
Heavy: 500 kW
V12, 24.2L displacement
Bore 128 mm, Stroke 157 mm
Power rating – kW
Light: 1,029-1,471 kW
Medium: 749-1,066 kW
Heavy: 551-735 kW
V12, 29.6L displacement
Bore 138 mm, Stroke 165 mm
Power rating – kW
Light: 1,618 kW
Ongoing development of this model will see other ratings approvals.
MAN Engines develop, produce and distribute innovative products of excellent quality. Meeting the highest power to weight ratios, fuel savings and emission stand available, MAN marine engines add extraordinary value to our commercial and pleasure customers alike. Proudly represented by Seapower Australia as the sole distributor across Australia, NZ and the Pacific.
