MAN Engines are the most advanced and innovative in the world. MAN has a long standing commitment to delivering extremely high quality products.
Our Pleasure and Commercial customers alike reap the benefits of MAN engines and establish long term partnerships with us.
A MAN engine means a better boat, adding to pleasure brand reputation and strengthening vessel/fleet operation with reliability to keep you in business and fuel efficiency to lower costs.

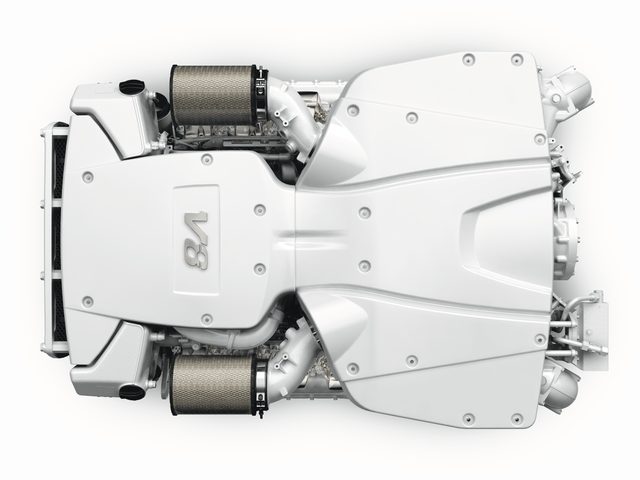

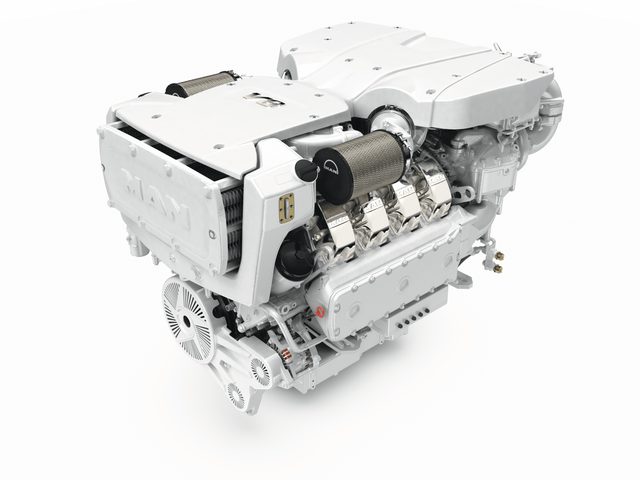

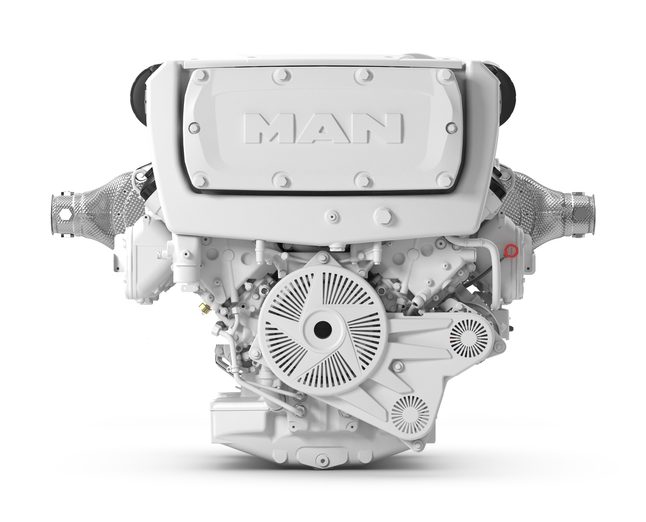

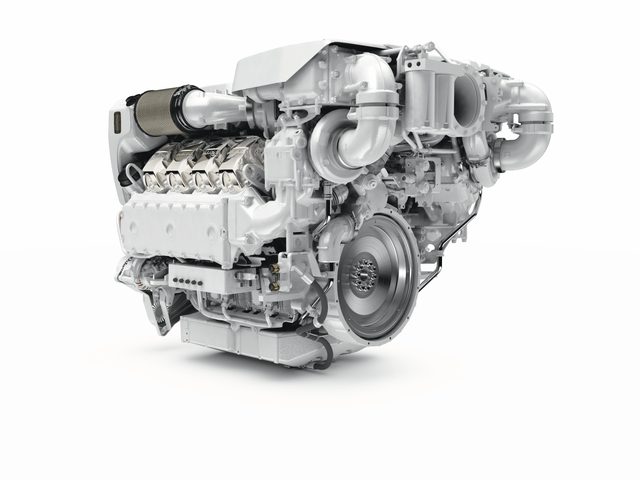

The most powerful V8 engine for yachts and sport fishing boats on the market to date, with 1,300 HP (956 kW) from 16 litres of displacement, is the MAN V8-1300.
This extremely high power density of 59 kW per litre displacement creates a clear advantage in ship design due to the low space requirement and low weight. The same power is typically generated from much larger and heavier engines with more cylinders, taking up more space in the engine room.
Its dry weight of 1,880 kg has remained the same, which is reflected in another significantly lower power-to-weight ratio of 1.96 kg/kW for the V8-1300. The MAN V8-1300 thus sets a new benchmark for power and compactness in V8 yacht engines, rated for light duty.
An improved injection system and new turbochargers contribute to increased power design. In addition, there are newly developed cylinder heads and an adapted cooling system. This results in a significant thermal relief of the engine with its high performance. A new crankcase, reinforced at significant points, also ensures the presentation of high performance over the long life of the engine.
Smooth running and low fuel consumption: That’s what MAN Engines stands for. This philosophy has again been consistently implemented in the V8-1300 by means of its highly efficient combustion.
With the MAN V8-1300 as the most powerful V8 engine on the market, top motorisation demands can be configured in many applications and customer requests for higher performance can be specifically met.
The MAN V8-1300 is fulfilling the currently valid emission requirements US EPA Tier 3, IMO Tier II as well as EU Stage IIIA and can therefore be operated in all common and popular areas.
Rating kW (mhp)
735 (1,000)
735 (1,000)
824 (1,120)
882 (1,200)
882 (1,200)
956 (1,300)
956 (1,300)
Variant
LE 426 V8-1000
LE 426 V8-1000
LE 453 V8-1120
LE 436 V8-1200
LE 439 V8-1200
LE 466 V8-1300
LE 469 V8-1300
Emissions
IMO II
IMO III, EPA III rec
IMO II
IMO II, EPA III rec
IMO III, EPA III rec
IMO II, EPA III rec
IMO III, EPA III rec
Rating kW (mhp)
588 (800)
588 (800)
662 (900)
662 (900)
Variant
LE 425
LE 428
LE 446
LE 449
Emissions
IMO II, EPA III com
IMO III
IMO II
IMO III
Rating kW (mhp)
500 (680)
500 (680)
Variant
LE 431
LE 437
Emissions
IMO II
IMO III
6 cylinder in line, 12.4L displacement
Bore 126mm, Stroke 166mm
Power rating – kW
Light: 537-625 kW
Medium: 412-478 kW
Heavy: 221-368 kW
V8, 16.2L displacement
Bore 128mm, Stroke 157mm
Power rating – kW
Light: 735-956 kW
Medium: 588-662 kW
Heavy: 500 kW
V12, 24.2L displacement
Bore 128 mm, Stroke 157 mm
Power rating – kW
Light: 1,029-1,471 kW
Medium: 749-1,066 kW
Heavy: 551-735 kW
V12, 29.6L displacement
Bore 138 mm, Stroke 165 mm
Power rating – kW
Light: 1,618 kW
Ongoing development of this model will see other ratings approvals.
MAN Engines develop, produce and distribute innovative products of excellent quality. Meeting the highest power to weight ratios, fuel savings and emission stand available, MAN marine engines add extraordinary value to our commercial and pleasure customers alike. Proudly represented by Seapower Australia as the sole distributor across Australia, NZ and the Pacific.
