MAN V12X - NEW GENERATION ENGINE

MAN V12X - NEW GENERATION ENGINE

MAN_V12X-2200_c
Play Video

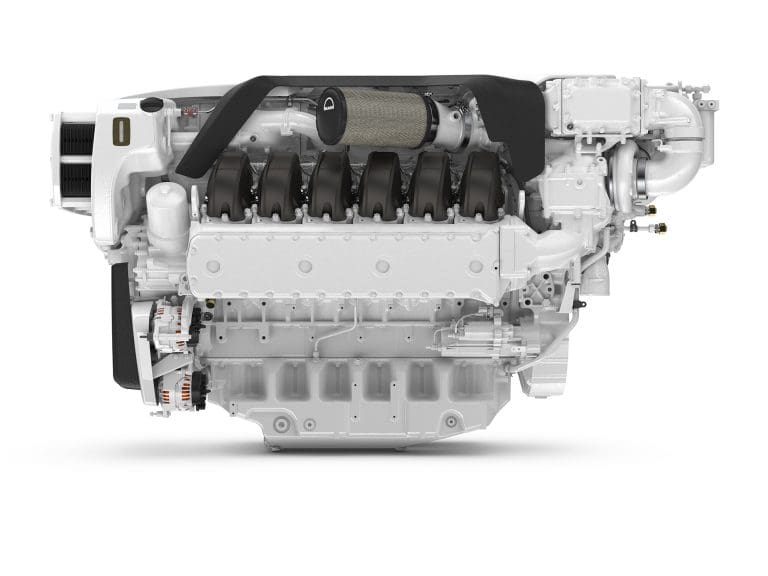

MAN V12X – THE EXCITING NEW ENGINE

The “X” stands for the neXt generation of engines from MAN Engines with eXtra displacement – 30 litres – and an eXcellent power-to-weight ratio.



The MAN V12X will be the first to join the engine portfolio in the MAN V12X-2200 model. In concrete terms, this means:

  • 2,200 hp (1,618 kW) - pleasure rating
  • 29.6 l displacement
  • 7,350 Nm torque
  • 74.3 hp (54.6 kW) per litre displacement
  • IMO Tier II & III, EPA Tier 3, RCD 2013/53/EC
  • Preliminary data with Medium duty rating - 1,650hp (1,213kW).

THE NEXT GENERATION OF ENGINES FROM MAN ENGINES

MAN engines are synonymous with robustness. To meet our high standards of durability and reliability, at MAN Engines we have fundamentally revised the next generation of MAN V12X engines.

“The MAN V12X marks the start of the neXt generation of yacht engines. We are acknowledging this milestone in engine technology with the new name V12X and giving the distinctive engine cover an X design. The redesign of the MAN V12X is accompanied by more displacement for shipyards. As always, we have retained the excellent power-to-weight ratio that MAN engines are known for.”

NEW POSSIBILITIES AND NEW APPLICATIONS

neXt-generation engine

The MAN V12X yacht engine. A new generation on a completely new basic engine. With the same standards of quality and robustness.

eXtra displacement

The 30-litre displacement and 2200 hp (1618 kW) of the MAN V12X open up new possibilities in yacht construction.

eXcellent power-to-weight ratio

The V12X follows MAN Engines’ guiding principle of building compact and powerful engines.

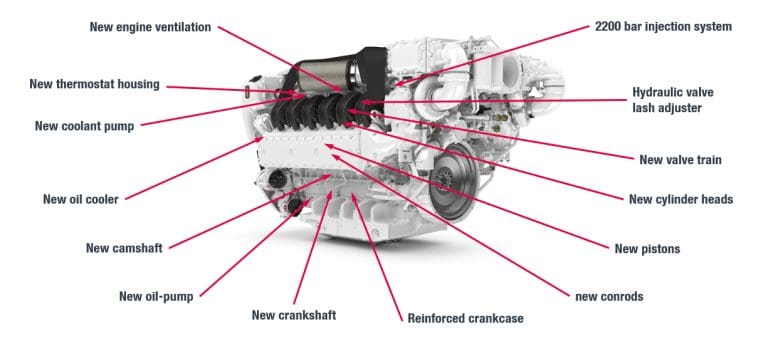

NEW DESIGN FEATURES PROMOTING DURABILITY AND ROBUSTNESS.

OVERVIEW:

Engine range

MAN_i6-730_c (1)

i6 ENGINES

up to 850HP

  • Light duty - 730 - 850 HP
  • Medium duty - 560 - 650 HP
  • Heavy duty - 301 - 500 HP

6 cylinder in line, 12.4L displacement
Bore 126mm, Stroke 166mm

Power rating – kW

Light:      537-625 kW

Medium: 412-478 kW

Heavy:     221-368 kW

More Details
MAN_V8-1300_c_cmyka (1)

V8 ENGINES

up to 1,300HP

  • Light duty - 1,000 - 1,300 HP
  • Medium duty - 800 - 900 HP
  • Heavy duty - 680 HP

V8, 16.2L displacement

Bore 128mm, Stroke 157mm

Power rating – kW

Light:       735-956 kW

Medium:  588-662 kW

Heavy:     500 kW

More Details
MAN_V12-2000_b

V12 ENGINES

up to 2,000HP

  • Light duty - 1,400 - 2,000 HP
  • Medium duty - 1,019 - 1,450 HP
  • Heavy duty - 749 - 1,000 HP

V12, 24.2L displacement
Bore 128 mm, Stroke 157 mm

Power rating – kW

Light:       1,029-1,471 kW

Medium:  749-1,066 kW

Heavy:      551-735 kW

More Details

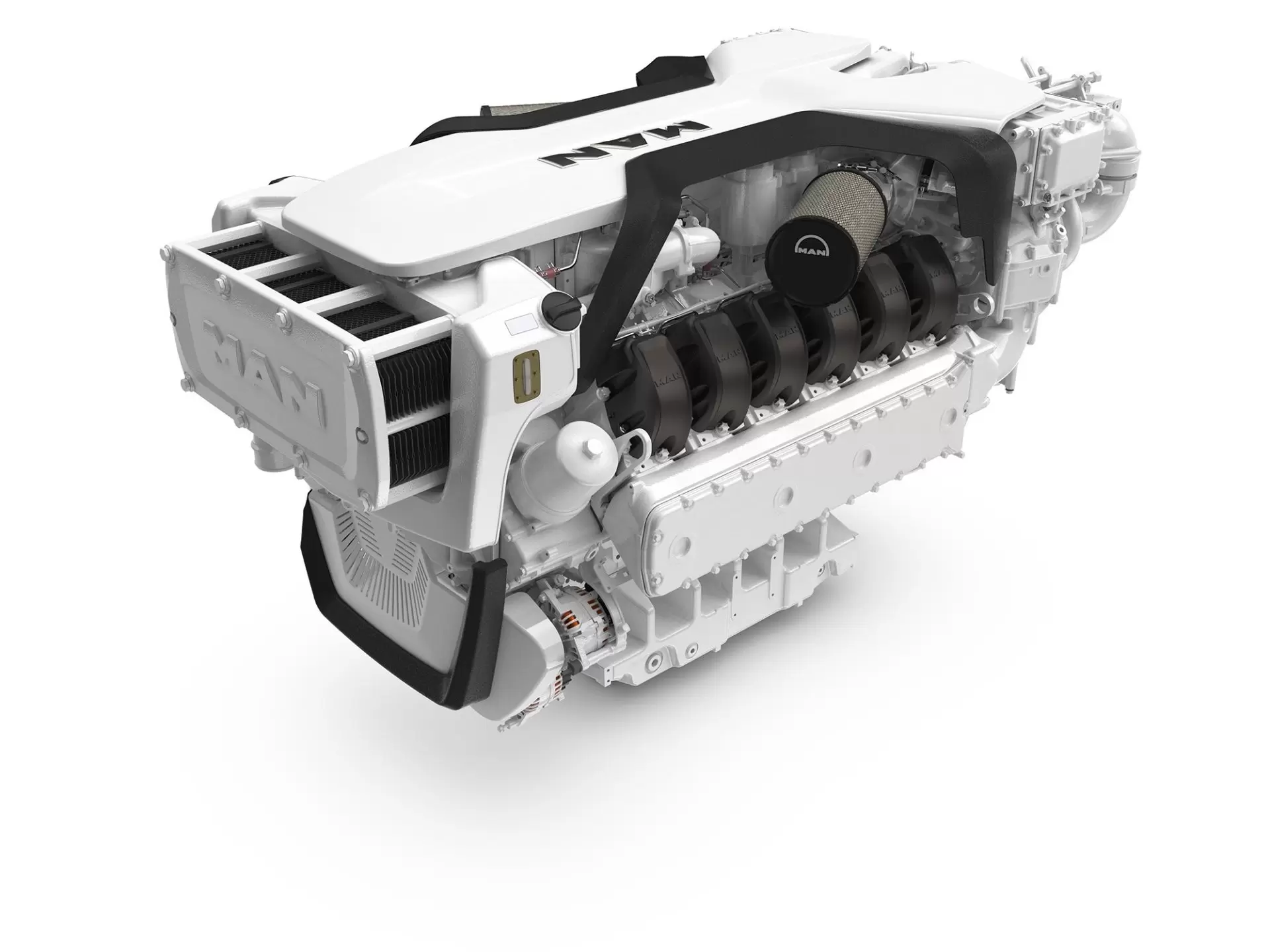

MAN_V12X-2200_a

V12X - NEW GENERATION

2,200HP

  • Light duty - 2,200 HP
  • Completely New Engine
  • Compact & Powerful

V12, 29.6L displacement
Bore 138 mm, Stroke 165 mm

Power rating – kW

Light: 1,618 kW

Ongoing development of this model will see other ratings approvals.

More Details

Duty ratings


  • Annual operating hours
  • Full load share
  • Ø Utilisation
  • Examples
LIGHT DUTY
  • ≤ 1,000
  • ≤ 20 %
  • ≤ 50 %
  • Patrol boats, escort boats, ambulance boats, police boats
MEDIUM DUTY
  • ≤ 3,000
  • ≤ 50 %
  • ≤ 70 %
  • Passenger ships, ferries, fishing boats
HEAVY DUTY
  • unlimited
  • ≤ 100 %
  • ≤ 100 %
  • Tugs/trawlers, cargo vessels, other working vessels

Engine range brochures available

  • Light Duty - for Pleasure boats or others, operating for less than 1000 hours per year.
  • Click the image below or here
MANpeasurebrochurecover2022

Medium and Heavy Duty

  • Medium Duty - for Commercial and heavier users, between 1000-3000 hours annually.
  • Heavy Duty - over 3000 hours annually. Click here or image below.
MANcommercialbrochurecover

DOWNLOADS

Engine range brochures - LIGHT DUTY

  • Light Duty - for Pleasure boats or others, operating for less than 1000 hours per year.
  • Click the image below or here
MANpeasurebrochurecover2022

Medium and Heavy Duty

  • Medium Duty - for Commercial and heavier users, between 1000-3000 hours annually.
  • Heavy Duty - over 3000 hours annually. Click here or image below.
MANcommercialbrochurecover
